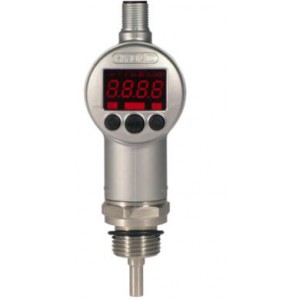

ETS 3200是一款具有數字顯示的緊湊型電子溫度開關。

憑借其集成的溫度探頭，ETS 3200特別適合直接油箱安裝，并有多種長度可供選擇。

具有一個或兩個開關輸出和可選的附加模擬輸出信號的不同輸出版本，提供了多種應用可能性。

使用按鍵板可以非�？焖俸洼p松地調整開關點和相關的滯后。

Specifications

Type	Electronic Temperature Switch
Model Code Description	ETS 3226-2-018-000
Direct Current (DC) Supply Voltage When Applied According to UL Specifications (Without Analog Output)	9 to 35 V
Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications	Limited energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950
Maximum Current Consumption (With Inactive Switching Output)	35 mA
Maximum Current Consumption (With Inactive Switching Output and Analog Output)	55 mA
Display	4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm
Weight	~135 g
Material of Connection	Stainless Steel
Seal Material	Fluoroelastomer (FKM)
Maximum Output Permitted Load Resistance	500
Minimum Output Permitted Load Resistance	1 k
Switching Function	Switching direction of the switching outputs adjustable (N/C or N/O)
Electrical Connection	Male M12x1, 4 Pole
CUL^®US Mark	Certificate No.: E318391
Note for CUL^®US Mark	Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1
Switch Point	-23 to 100 ºC-9 to 212 ºF
Hysteresis (Switch Point)	1.0 to 123.5 ºC2 to 222 ºF
Residual Ripple of Supply Voltage	≤ 5 %
Increment (Switch Point)	0.5 ºC1.0 ºF
Note for Increment (Switch Point, Window Function)	All ranges given in the table can be adjusted by the increments shown.
Lower Switch Value (Window Function)	-23 to 97.5 ºC-9 to 208 ºF
Upper Switch Value (Window Function)	-22 to 98.5 ºC-7 to 209 ºF
Increment (Window Function)	0.5 ºC1.0 ºF
Maximum Total Current Consumption	2.455 A
Modification Number	000
Switching Outputs	2 Switching Outputs
Division	17
BUn	EA

Input Data

Measuring Range	-25 to 100 ºC-13 to 212 ºF
Input Probe Length	0.71 in18 mm
Input Pressure Resistance	8700 psi
Input Mechanical Connection	G1/2 A DIN 3852 (Male)
Torque Value	45 N·m33 lb·ft
Input Mechanical Connection Type	G1/2 A DIN 3852, Male
Input Mechanical Connection Size	G1/2, Male

Output Data

Accuracy at Room Temperature	≤ ± 2.0ºF (+/- 1.0ºC)
Operating Temperature [Min]	-25 ºC-13 ºF
Operating Temperature [Max]	100 ºC212 ºF
Output Temperature Drift at Maximum Zero Point and Range (Full Scale)	≤ ± 0.0085% %/°F

Switch Outputs

Switch Outputs Type	PNP Transistor Switching Output
Maximum Switching Current Per Switch Output	1.2 A
Switching Cycles In Million	> 100 million
Rise Time to DIN EN 60751 for t₅₀	3 s
Rise Time to DIN EN 60751 for t₈₀	9 s

Environmental Conditions

Ambient Temperature Range	-13 to 140 ºF
Ambient Temperature Range	-13 to 176 ºF
Sensing Temperature [Max]	100 ºC212 ºF
Sensing Temperature [Min]	-25 ºC-13 ºF
Storage temperature range	-40 to 176 ºF
Fluid temperature range	-13 to 212 ºF
Note for Fluid Temperature Range	-13 °F with FPM seal, -40 ºF on request
CE Mark	CE Mark EN 61000-6-1/2/3/4
Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz	≤ 10 g
Shock Resistance According to DIN EN 60068-2-29 (11 ms)	≤ 50 g
Protection class to IEC 6529	IP 67

Pin Connections

Pin Connection 1	+U_B
Pin Connection 2	SP2
Pin Connection 3	0 Voltage
Pin Connection 4	SP1

Dimensions

Sensor Diameter	6 mm
Sensor Length	18 mm
Length	42 mm
Width	40.4 mm

Setting Options

All the settings available on the ETS 3200 are combined in 2 easy-to navigate menus. To prevent unauthorized adjustment of the instrument, a programming lock can be set.

Additional Information

For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).

Accessories

Appropriate accessories, such as electrical connectors, protective sleeves for tank mounting, splash guards, etc. can be found in the Accessories brochure.

Special Features

2 switching outputs, up to 1.2 A load per output.
Optional analog output signal selectable (4 .. 20 mA, 0 .. 10 V)
4-digit display
Optimum alignment - display can be rotated in two planes (axes)
Switching / switch-back points and many useful additional functions can be set using the keypad.
Display of temperature and unit of measurement in ºC or ºF
Switching mode of the switching outputs adjustable (switching point function or window function)
Switching direction of the switching outputs adjustable (N/C or N/O)
Switch-on and switch-off delay adjustable from 0.00 .. 99.99 seconds
Choice of display (actual temperature, peak temperature, switching point 1, switching point 2, display off)

Note

Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.

Subject to technical modifications.
