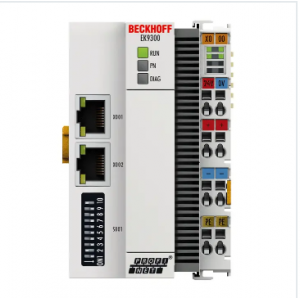

| Task within EtherCAT system |
coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks |
| Number of EtherCAT Terminals |
depending on the process data size |
| Type/number of peripheral signals |
depending on the process data size |
| Protocol |
PROFINET RT |
| Data transfer rates |
100 Mbit/s |
| Configuration |
not required |
| Bus interface |
2 x RJ45 (switched) |
| Power supply |
24 V DC (-15 %/+20 %) |
| Input current |
typ. 120 mA + (total E-bus current)/4 |
| Current consumption E-bus |
up to 2 A |
| Power contacts |
max. 24 V DC/max. 10 A |
| Electrical isolation |
500 V (power contact/supply voltage/Ethernet) |
| Dimensions (W x H x D) |
64 mm x 100 mm x 73 mm |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. |
IP20/see documentation |
| Approvals/markings |
CE, UL, ATEX, IECEx, cFMus |
| Ex marking |
ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc |
