測量原理：放射線測量
特點/應用

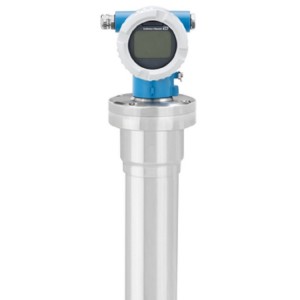

Compact transmitter for extreme process conditions (temperature, pressure);
Non-contact measuring technique
界面測量
Interfaces liquid / liquid also with emulsion layers
Interfaces liquid / solid
特點
Heartbeat Technology,
SIL 2/3 according to IEC 61508,
Bluetooth® commissioning, operation and maintenance with the SmartBlue App
電源/通信
2-wire loop powered
測量精度
+/-1%
環境溫度
-40 °C...+80 °C,
(-40 °F...+176 °F)
過程溫度
Any
過程壓力（絕壓）/***大過壓限定值
Any
主要接液部件
Non-contact
過程連接
Non-contact
傳感器長度
PVT scintillator
400 mm...3000 mm,
>3000 mm cascade mode
***大測量距離
Unlimited measuring range,
Cascade
通信
4...20 mA HART
證書和認證
ATEX, IEC Ex, CSA C/US, NEPSI, INMETRO, EAC Ex, JPN Ex, KC Ex
安全認證
Overfill protection WHG
SIL 2/3
設計認證
EN 10204-3.1
選項
Display
組件
Isotope: FSG60, FSG61,
Source container: FQG60, FQG61, FQG62, FQG63, FQG66,
Mounting accessories: FHG61
