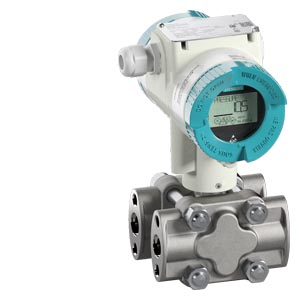

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (100.5 inH²O) Oval flange, fastening thread: M10 (PN160), M12 (PN420) Sensor Pressure: Diaphragm: Alloy C22/2.4602, measuring cell: Alloy C276/2.4819; Sensor Differential pressure: Diaphragm: Alloy C276/2.4819, measuring cell: Alloy C276/2.4819, process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, plastic General approval without Ex approval: World (CE, RCM) except: EAC, FM, CSA, KCC Mounting bracket, electrogalvanised steel
