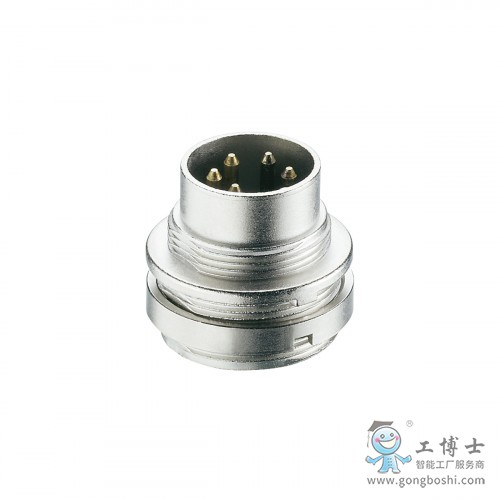

底盤塞acc。符合IEC 61076-2-106, IP40，有螺紋連接和焊接端子，用于前安裝底盤塞acc。

環境條件
Temperature range:-40 °C/+85 °C

物料
Insulating body:PA GF, V-0 according to UL94

Contact pin:CuZn, silver-plated and flash gold-plated (3-8 poles)
CuZn, pre-nickel and gold-plated (12 poles)

Housing:Zn diecast, pre-copper and nickel-plated
機械數據
Protection class:IP40 *1

1) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart

可連接的電線用于焊接連接
Section:≤ 0.75 mm² (AWG 20)
(3-8 poles)
≤ 0.25 mm² (AWG 24)
(12 poles)

電氣數據（Tamb 20 °C）
Rated current:5 A (Tamb 40 °C, 3-8 poles)
3 A (Tamb 40 °C, 12 poles)

Rated voltage:with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)

Rated impulse voltage:1500 V (versions 30, 40, 50/6, 60, 70, 120)
500 V (versions 50, 71, 80, 81)


型號                                                       芯數      包裝單位（套）***小交貨（套）

SFV 30	3	50	100
SFV 40	4	50	100
SFV 50	5	50	100
SFV 50/6	5	50	100
SFV 60	6	50	100
SFV 70	7	50	100
SFV 71	7	50	100
SFV 80	8	50	100
SFV 81	8	50	100
SFV 120	12	50	100
