ELxxxx-0090\EtherCAT終點站，Twinsecurity SC
這個雙安全SC技術（雙安全單通道）允許在任何現場總線網絡中使用用于安全任務的標準信號。
TwinSafeSC組件的數據通過Twinsecurity協議傳輸?shù)絋winSafeLogic，在那里它們可以用于與安全相關的應用程序中。TwinSafe SC組件的正確應用和相應的規范分類的詳細示例（經T V S D確認/計算）可在Twinsecurity應用手冊中找到。
使用兩種不同的測量方法使用Twinsecurity SC處理模擬值的典型應用場景如下：
速度監測： 具有安全功能的驅動器（如STO）和帶EL5021-0090的sin/cos編碼器
溫度測量： EL3312熱電偶型K型和EL3214-0090型PT 1000型熱電偶
水平測量： 超聲波傳感器（0…）10V）與EP 3174-0092和電平探針（4…）20 Ma）與EL3152
壓力測量： 帶有EL6224和壓力傳感器（4…）的壓力傳感器（IO-Link
起重裝置的監測、松弛電纜的檢測和過載：帶EL3356-0090和EL3751的導軌滑輪上的SG傳感器
ELX終端與雙安全SC技術的結合還代表了一種高度緊湊的解決方案，適用于對本質安全的信號傳輸和功能安全的要求。ELX終端具有Twinsecurity SC，從而使本質上安全的現場設備直接連接到0/20區域。
EL3124-0090 | TwinSAFE SC: 4-channel analog input terminal 4…20 mA, differential input, 16 bit
Product series:EtherCAT TerminalsChannels:4Signal （analog）：4…20 mASignal resolution （analog）：16 bit
Learn more
EL3174-0090
EL3174-0090 | TwinSAFE SC: 4-channel analog input, -10/0…+10 V, -20/0/+4…+20 mA, 16 bit
Product series:EtherCAT TerminalsChannels:4Signal （analog）：parameterizableSignal resolution （analog）：16 bit
Learn more
EL3214-0090
EL3214-0090 | TwinSAFE SC: 4-channel input terminal Pt100 （RTD） for 3-wire connection
Product series:EtherCAT TerminalsChannels:4Signal （analog）：Resistance thermometer （RTD）Signal resolution （analog）：16 bit
Learn more
EL3314-0090
EL3314-0090 | TwinSAFE SC: 4-channel thermocouple input terminal with open-circuit recognition
Product series:EtherCAT TerminalsChannels:4Signal （analog）：Thermocouples （mV）Signal resolution （analog）：16 bit
Learn more
EL3356-0090
EL3356-0090 | TwinSAFE SC: accurate 1-channel load cell analysis （resistor bridge）， 24 bit
Product series:EtherCAT TerminalsChannels:1Signal （analog）：Resistance measurementSignal resolution （analog）：24 bit
Learn more
EL5001-0090
EL5001-0090 | SSI encoder interface, TwinSAFE SC
Product series:EtherCAT TerminalsEncoder type:SSI
Learn more
EL5021-0090
EL5021-0090 | 1-channel SinCos encoder interface, 1 VPP, TwinSAFE SC
Product series:EtherCAT TerminalsEncoder type:SinCos 1Vpp/11?App
Learn more
EL5032-0090
EL5032-0090 | 2-channel EnDat 2.2 interface, TwinSAFE SC
Product series:EtherCAT TerminalsEncoder type:EnDAT
Learn more

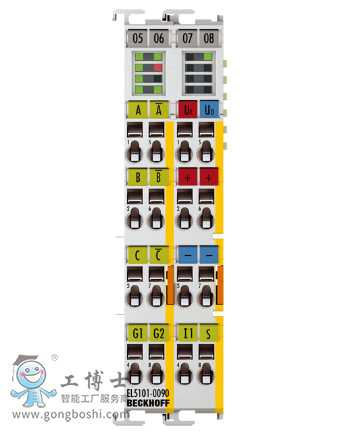

EL5101-0090
EL5101-0090 | Incremental encoder interface, RS422, TTL, 1 MHz, TwinSAFE SC
Product series:EtherCAT TerminalsEncoder type:incremental, differential （RS422）
Learn more
EL5151-0090
EL5151-0090 | Incremental encoder interface, 24 V HTL, 100 kHz, TwinSAFE SC
Product series:EtherCAT TerminalsEncoder type:Incremental, single-ended （24 V DC）
Learn more
EL6224-0090
EL6224-0090 | TwinSAFE SC: IO-Link
Product series:EtherCAT TerminalsMaster/Slave functionality:Master/ControllerSubsystem:IO-Link
Learn more
ELX3152-0090
ELX3152-0090 | 2-channel analog input terminal 0/4…20 mA, single-ended, 16 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:2Signal （analog）：0/4…20 mASignal resolution （analog）：16 bitTwinSAFE SC:yes
Learn more
ELX3202-0090
ELX3202-0090 | 2-channel analog input terminal RTD for 2, 3 and 4-wire connection, 16 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:2Signal （analog）：Resistance thermometer （RTD）Signal resolution （analog）：16 bitTwinSAFE SC:yes
Learn more
ELX3204-0090
ELX3204-0090 | 4-channel analog input terminal RTD, 2-wire connection, 16 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:4Signal （analog）：Resistance thermometer （RTD）Signal resolution （analog）：16 bitTwinSAFE SC:yes
Learn more
ELX3312-0090
ELX3312-0090 | 2-channel analog input terminal thermocouple/mV measurement, 2-wire connection, 16 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:2Signal （analog）：Thermocouples （mV）Signal resolution （analog）：16 bitTwinSAFE SC:yes
Learn more
ELX3314-0090
ELX3314-0090 | 4-channel analog input terminal thermocouple/mV measurement, 2-wire connection, 16 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:4Signal （analog）：Thermocouples （mV）Signal resolution （analog）：16 bitTwinSAFE SC:yes
Learn more
ELX3351-0090
ELX3351-0090 | 1-channel analog input terminal strain gauge, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Analog inputChannels:1Signal （analog）：Resistance measurementSignal resolution （analog）：24 bitTwinSAFE SC:yes
Learn more
ELX5151-0090
ELX5151-0090 | 1-channel incremental encoder interface NAMUR, 32 bit, Ex i, TwinSAFE SC
Product series:EtherCAT TerminalsI/O type:Position measurementChannels:1Signal （analog）：NAMURTwinSAFE SC:yes
