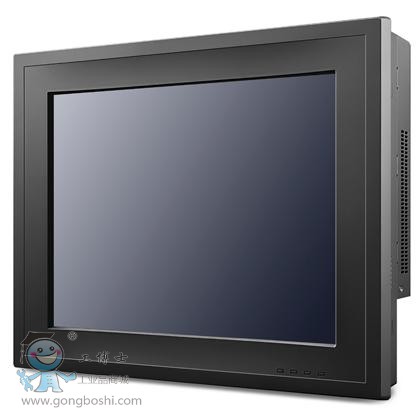

研華整機 PPC-1150-RA1E/2G/500G 15寸無風扇平板電腦電阻式觸摸屏

點擊圖片查看原圖

店鋪基本資料信息

產品詳細說明

研華整機PPC-1150-RA1E/2G/500G 15寸無風扇平板電腦

pgkglImaLlS1[1]

研華整機PPC-1150-RA1E/2G/500G15寸無風扇平板電腦帶觸摸屏

產品信息：

加工定制：是	品牌：Advantech/研華	型號：PPC-1150
用途：工業	產品認證：1

isplay	Backlight Life (hrs)	50,000
	Display Type	15" TFT LCD (LED backlight)
	Luminance (cd/m2)	250
	Max. Colors	16.2M/262K
	Max. Resolution	1024 x 768
	Operating Temperature	-30 ~ 70°C
	Pixel Pitch (mm)	0.297 x 0.297
	Viewing Angle	80 (left), 80 (right), 70 (up), 70 (down)
Environment	EMC	CCC
	Front Panel Protection	IP65 Compliant
	Operating Temperature	0 ~ 50°C (32 ~ 122°F)
	Relative Humidity	10 ~ 95% @ 40° C (non-condensing)
	Safety	CCC
	Shork	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
	Storage Temperature	-20 ~ 60°C (-4 ~ 140°F)
	Vibration	Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
General	2nd Cache Memory	512 KB
	Bus	1 x Mini PCIe
	Chipset	Intel ICH10M
	CPU	Intel Atom N2600 1.6GHz 3.5W Dual Core CPU on board
	Dimensions (W x H x D)	396 x 317 x 57 mm
	HDD	1 x 2.5" internal SATA HDD
	I/O Ports	5 x Serial ports: RS-232 x 3, RS-422/485 x 1, RS-232/422/485 x 1, 4 x USB 2.0 ports (external)
	Memory	SO-DIMM x 1, DDR3 667, Max 2GB
	Network	2 x 10/100/1000 Mbps Ethernet
	OS Support	WES 09, WES 7, XP pro, CE7.0, Win7
	Power Supply	DC 12 ~30V
	SSD	mSATA*1 (internal)
	Watchdog Timer	255 timer levels; setup by software
	Weight	3.2 kg
Touchscreen	Controller	RS-232 interface
	Durability (Touches)	36 million
	Light Transmission	81+/-3%
	Resolution	2048 x 2048
	Software Driver Support	Windows XP, CE,Win7
	Touch Type	Analog Resistive 5 wires
