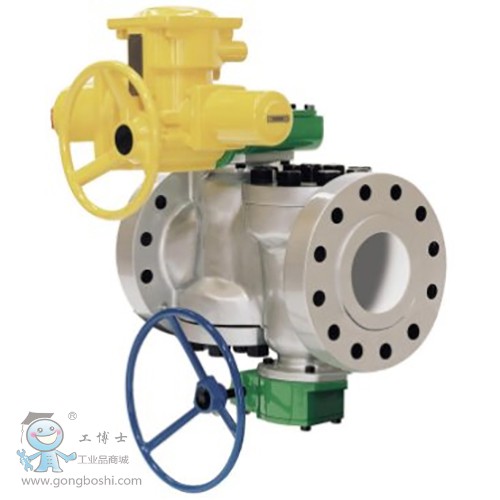

Durco T4E valves provide maximum corrosion resistance while eliminating product contamination at a reasonable cost. They are available with pneumatic or electric actuators for on-off or modulating control applications.
Main feartures:
•Improved plant and personnel safety assured by a double isolation design that allows the operator to verify valve isolation before carrying out maintenance
•A cost-, space- and weight-saving alternative to a double block and bleed system using two valves in a series
•Ease of installation from a compact design with the same face-to-face dimensions as a single valve, often replacing it without the need for pipe work modifications
•Greater process control via a pressure balanced design that provides a true bubble-tight double isolation capability within a single valve body
Size Range:
•DN 15 to 600
•NPS ½ to 24
Pressure Class Range:
•PN 20 to 420
•Class 150 to 2500
•API 2000 to 10000
Seating Material: Wide Metal-to-Metal integral with body and plug
