Zener Barriers – Cost Saving and Easy Mounting Ex-Protection



Zener barriers provide cost saving Ex-protection for various applications in process automation systems. The amount of energy transferred to the hazardous location is limited to a safe level incapable of igniting the explosive atmosphere.

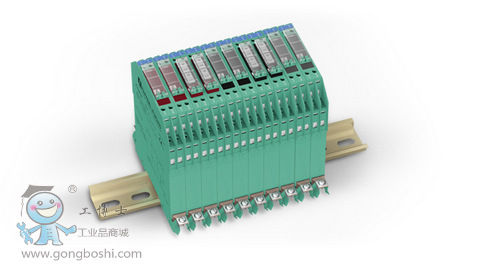

Z-system zener barriers from Pepperl+Fuchs are directly mounted on a 35 mm DIN-Rail. Through accessories, the required grounding can be done directly on the DIN mounting rail.

• Fast mounting on the DIN-rail
• Grounding directly connected with DIN-rail
• Separation of field loop by removing the fus

Z-system zener barriers are available with high density up to 2 channels / 12,5 mm width. Variants with field replaceable fuses provide a convenient means of disconnecting or open-circuiting the instrument loop without interfering with the wiring, making commissioning and maintenance operations much easier.

General specifications

	Z728.CL Zener Barrier
	1-channel, DC version, positive polarity, Working voltage 26.5 V at 10 µA, Series resistance max. 342 Ω + 2 V, Fuse rating 50 mA, DIN rail mounting, Current limiting, Number of channels: 1-channel, Type: DC, positive, Working voltage: max. 26.9 V , 26.5 V at 10 µA

Z728.CL相關技術參數：

General specifications
Type		DC version, positive polarity
Electrical specifications
Nominal resistance		300 惟
Series resistance		max. 342 惟 +2聽V
Fuse rating		50 mA
Hazardous area connection
Connection		terminals 1, 2
Current limit		45 mA
Safe area connection
Connection		terminals 7, 8
Working voltage		max. 26.9 V , 26.5 V at 10 碌A(chǔ)
Conformity
Degree of protection		IEC 60529
Ambient conditions
Ambient temperature		-20 ... 60 擄C (-4 ... 140 擄F)
Storage temperature		-25 ... 70 擄C (-13 ... 158 擄F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals , max. core cross-section 2 x 2.5 mm2
Mass		approx. 150 g
Dimensions		12.5 x 115 x 110 mm (0.5 x 4.5 x 4.3 inch)
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
