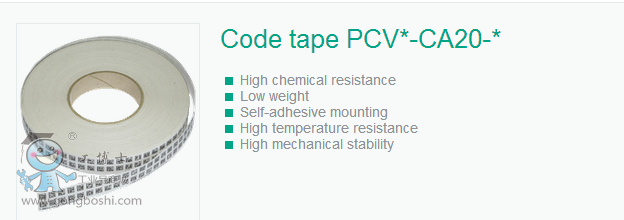

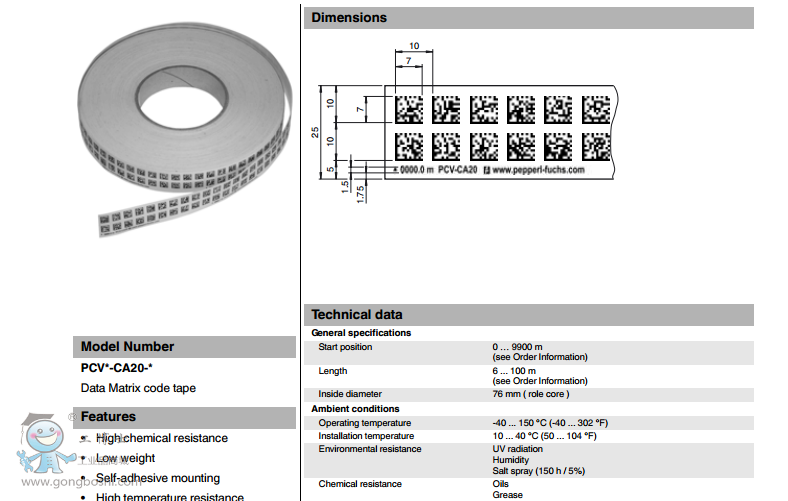

Data Matrix code tape
General specifications
Start position 0 … 9900 m
(see Order Information)
Length 6 ... 100 m
(see Order Information)
Inside diameter 76 mm ( role core )
Ambient conditions
Operating temperature -40 ... 150 °C (-40 ... 302 °F)
Installation temperature 10 ... 40 °C (50 ... 104 °F)
Environmental resistance UV radiation
Humidity
Salt spray (150 h / 5%)
Chemical resistance Oils
Grease
Fuels
Aliphatic solvents
Weak acids
Mechanical specifications
Material thickness 150 µm
Material polyester laminate
Surface polyester , matte
Mass 6.3 g / m2
Tensile strength ≥ 150 N
Adhesive Acrylate-based adhesive ; curing 72 h
Adhesive strength Average values (FTM2)
aluminum : 24 N / 25 mm
High grade stainless steel : 25 N / 25 mm
ABS : 22 N / 25 mm
PP : 18 N / 25 mm
HD-PE : 12 N / 25 mm
LD-PE : 12 N / 25 mm
